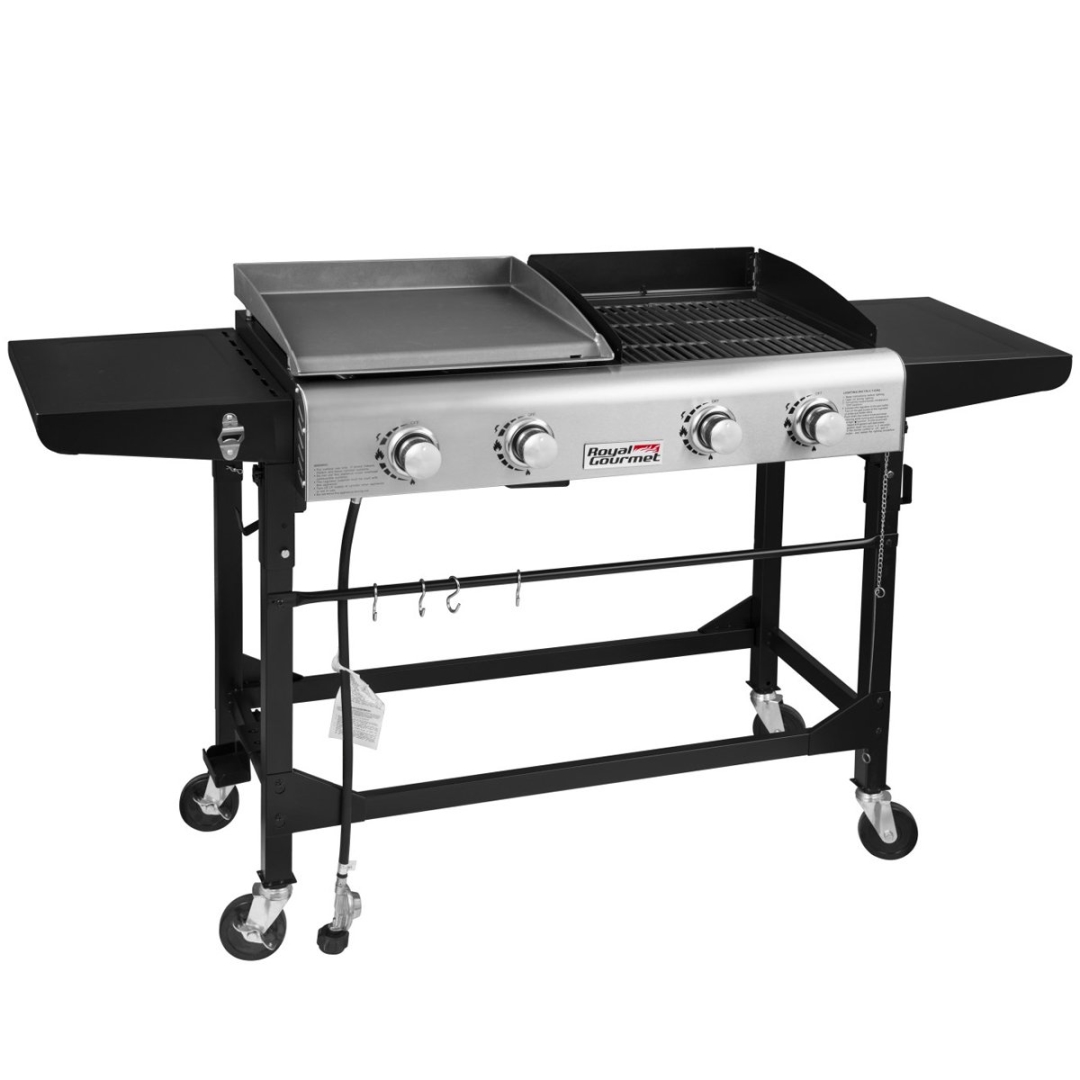

Combo of griddle and grids

Model No.: GD401 In Stock

Loading Rate

20GP ~ 0%

40GP ~ 0%

40HQ ~ 0%

The proportion of your current product to the above containers

Contact Your Manager

Specification Product Features Usage Scenario

Warming Rack Area (mm) Cooking Area (mm) Power (kw) Product Size (mm) Packaging Size (mm) N.W/G.W (kgs) PCS / Loading Qty
20GP 40GP 40HQ
W/O 420*450+420*450 14kW 1690*530*1000 1100*580*410 47/50 100 210 252
  1. Body Area (mm)

    905*505

  2. Model No.

    GD401

  3. CE Certificate No.

    UK-GZH-0359-0002027R2

  4. Main Burner Power

    3.5kW*4

  5. Side Burner Power

    W/O

  6. Griddle:

    Steel griddle 3.5mm, matt black porcelain enamel

  7. Grids:

    Cast iron cooking grids

  8. Heat Diffuser:

    Steel, porcelain enamel

  9. Wind Shield Board:

    Steel, black powder coating

  10. case:

    high-temp. black painting steel

  11. side shelf:

    Steel,black powder coating

  12. main burner:

    stainless steel

  13. side burner:

    W/O

  14. control panel:

    W/O

  15. cabinet back board:

    W/O

  16. bottom board:

    Steel tubes, black powder coating

  17. cabinet Legs:

    Steel tube, black powder coating , easy to fold down

  18. Cabinet towel bar:

    Steel, black powder coating, with 3 hooks

  19. regulator and hose:

    Not included

Product Features

Usage Scenario
