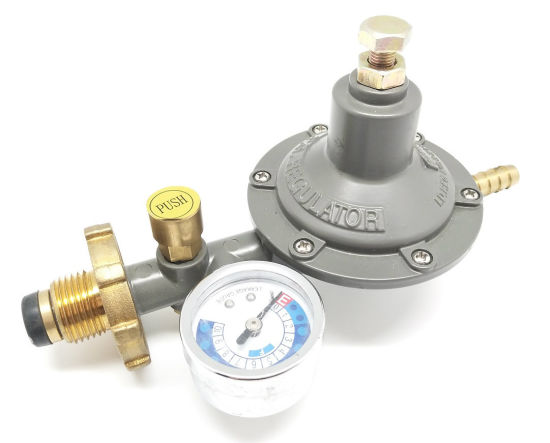

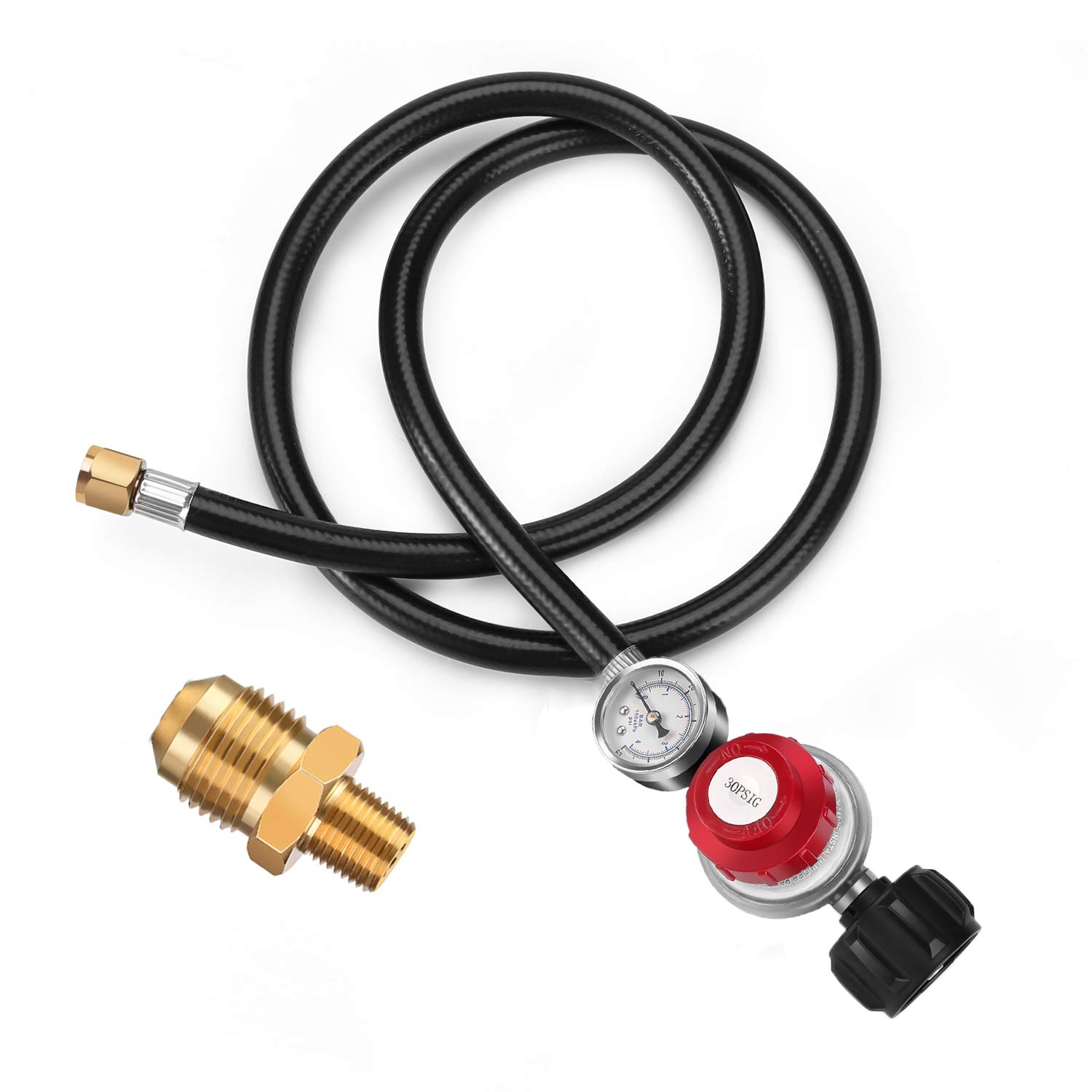

Gas Grill Regulators

All LP grills are equipped with a pressure regulator which attaches between the grill control valves and the LP cylinder. The pressure output of the tank is much higher than the required pressure operating the grill and the regulator reduces this pressure to a lower level which is workable. The regulator must be used in conjunction with an LP Tank to reduce the risk of gas explosion. The (Prest-O-Lite) POL valve is the connector that goes between the regulator and the tank.

Adjustment

The regulator is factory set at a specified outlet pressure of 11 inches of water column and is generally factory sealed and not adjustable. Do not try to adjust. The regulator can be checked by measuring the pressure on a manometer.

Testing for Leaks

1. Mix a 50/50 solution of liquid dish soap and water
2. Connect the LP cylinder
3. Make sure the control valves are OFF
4. Brush the soap solution over the POL valve and all piping and hose connections
5. Turn on the cylinder valve and listen for leaks, and look carefully for soap bubbles being formed at the connections which indicates leaks

About Us

All Gas Regulations of Huige Gas Grills are replaceable. We have optimized sizes and variants of gas regulators to the fullest extent, ensuring all of our grills meet market requirements and guarantee all the certifications of all regions globally.

Wanna know the Length, Primary Material, Pressure or the Your Local Compliance with the Gas Regulator? Ask Our Sales Manager to Help You!
